The Worldwide Leading Selective Soldering System
Modular Selective Platform for Highly Efficient and Flexible Inline Soldering
VERSAFLOW 3/45
As the world’s leading selective soldering platform, the VERSAFLOW 3/45 offers a modular design built for maximum efficiency and flexibility in inline soldering. The base configuration features fluxing, preheating, and soldering modules combined with a segmented conveyor system. For higher throughput or specific production needs, additional modules can be seamlessly integrated.
The optional dual-lane system doubles productivity without increasing the machine’s footprint, and segmented preheating modules further boost throughput for smaller assemblies. Fully equipped, the VERSAFLOW 3/45 can process up to 22 assemblies simultaneously, delivering unmatched performance in compact inline manufacturing.
| Technical Specification | VERSAFLOW 3/45 |
|---|---|
| Length | from 2,450 to 7,500 mm |
| Width | 1,750 mm |
| Height | 1,650 mm |
| Conveyor System | VERSAFLOW 3/45 |
|---|---|
| Conveyor Type | Pin chain conveyor or roller conveyor |
| PCB width | 63.5-508 mm (opt. 600 mm) |
| PCB length | 127-508 mm (opt. 600 mm) |
| Max. PCB top structures | up to 120 mm |
| Max. circuit board structures | at the bottom up to 60 mm (30 mm for z-variable modules) |
| Max. PCB weight | 5 kg (opt. 15 kg) |
| Fluxer/Preheating/Soldering Module | VERSAFLOW 3/45 |
|---|---|
| Fluxer | Drop jet in various sizes |
| Preheating | IR radiator heating, convection or combination of IR and convection |
| Soldering module | Electromagnetic soldering potMini wave 13 kg up to 6 potsMulti-wave soldering surface up to 356x356 mm / 360x340 mm / 370x425 mmLP size up to 406 x 508 mm |

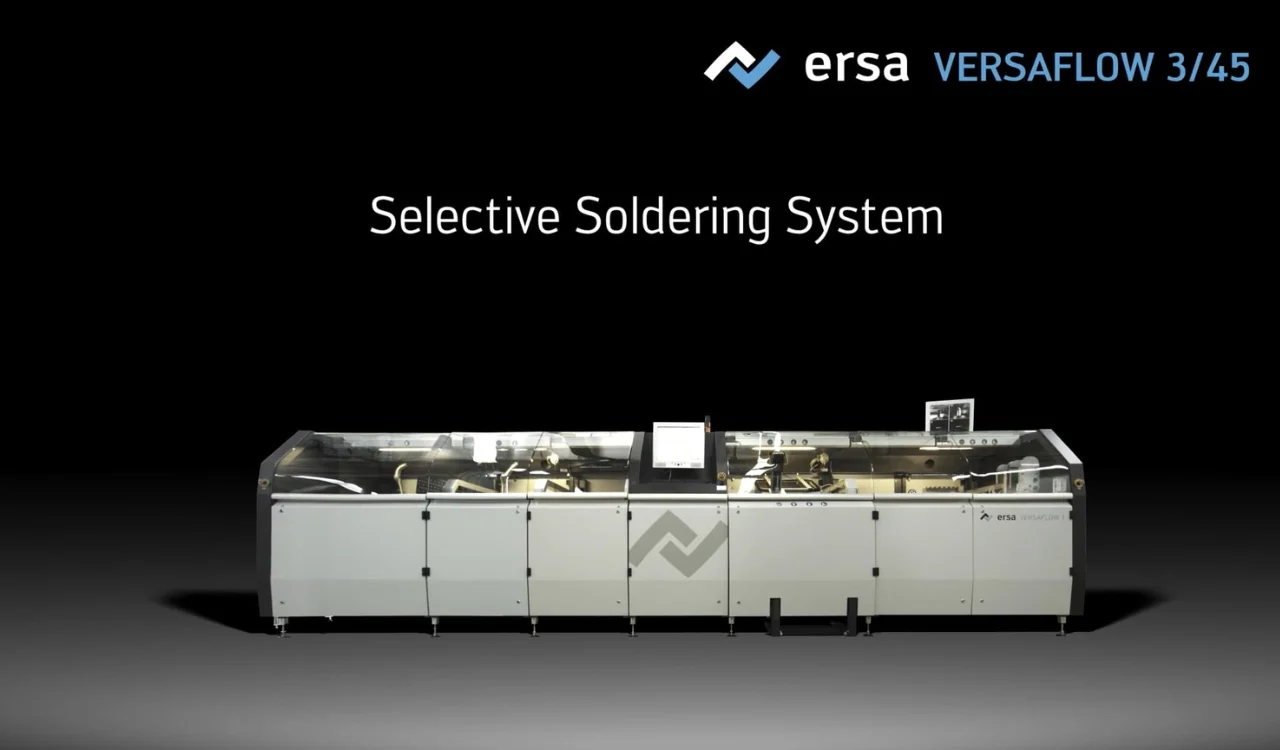

This product video introduces VERSAFLOW 3/45 by summarizing its general working principle and typical application scenarios.
