Inline Selective Soldering for PCB sizes up to 1,200 x 610 mm

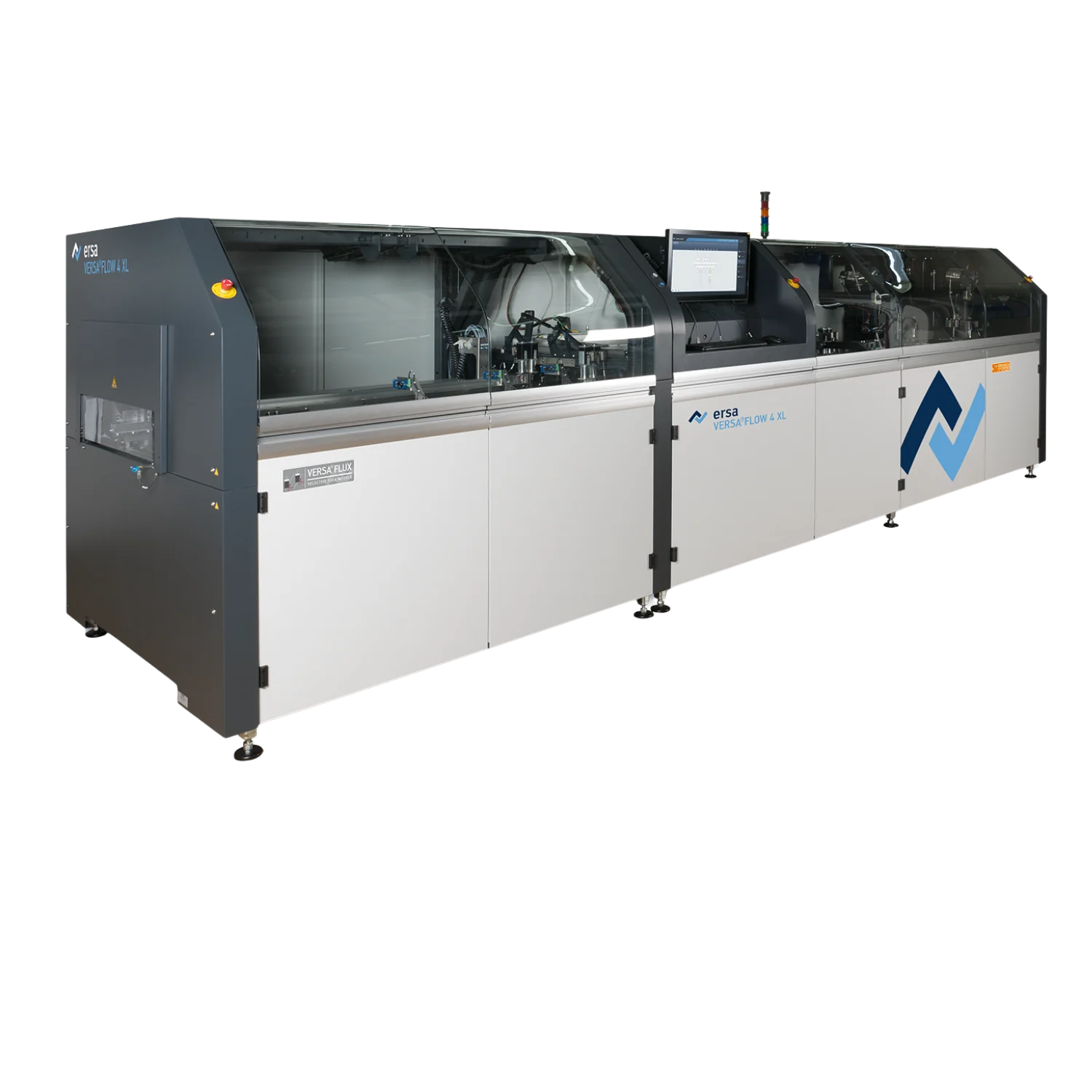

VERSAFLOW 4 XL
While electronics design continues to move toward miniaturization, there is also a growing demand for very large, highly integrated assemblies, such as those used in control centers. The VERSAFLOW 4 XL is engineered to handle PCB sizes up to 1,200 x 610 mm with exceptional efficiency and maximum process reliability. Its advanced selective soldering capabilities ensure precise, consistent results even on the largest and most complex boards, making it ideal for high-end industrial applications.
| Technical Specification | VERSAFLOW 4 XL |
|---|---|
| Length | 4,700 mm |
| Width | 1,800 mm |
| Height | 1,600 mm |
| Conveyor System | VERSAFLOW 4 XL |
|---|---|
| Conveyor Type | 1,600 mm |
| PCB width | 50-610 mm |
| PCB length | 127-508 mm, opt. 1,200 mm |
| PCB weight | 15 kg (opt. 20 kg) |
| Fluxer/Preheating/Soldering Module | VERSAFLOW 4 XL |
|---|---|
| Fluxer | VERSAFLUX module with 2 independent axis systems, Precision spray flux system, Number of spray heads/axis: up to 2 |
| Preheating | IR emitter at the bottom (basic), convection at the top (option) |
| Soldering module | VERSAFLEX soldering module with 2 independent axis systems, Mini wave, approx. 13 kg |
This product video introduces VERSAFLOW 4 XL by summarizing its general working principle and typical application scenarios.
