Your Entry into the Excellence Class of Selective Soldering

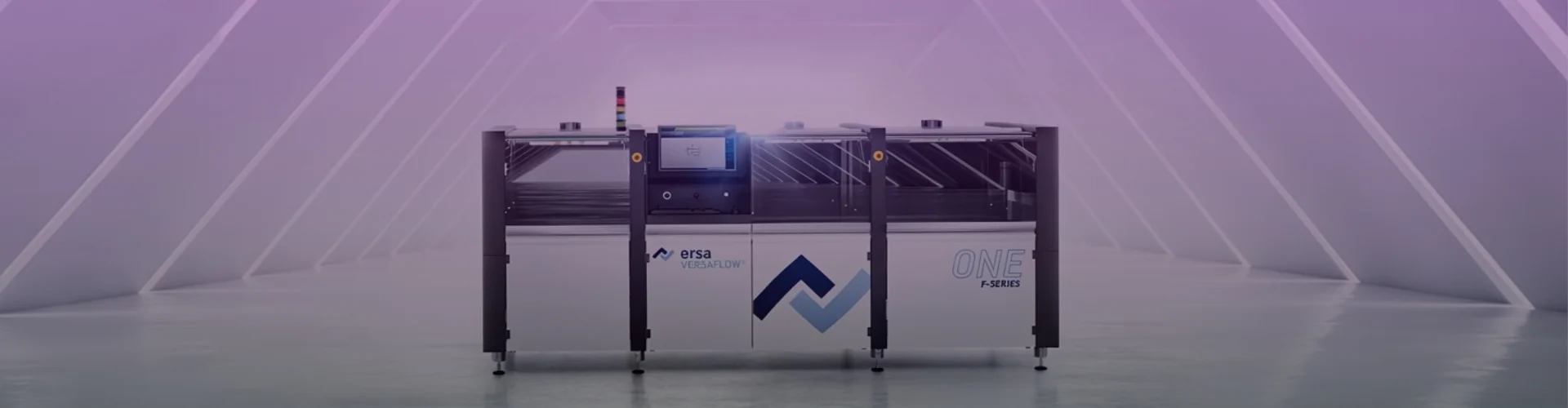

VERSAFLOW ONE F
The VERSAFLOW ONE F introduces manufacturers to Ersa’s industry-leading inline selective soldering portfolio. Compact in design yet uncompromising in quality, it combines proven Ersa engineering DNA with advanced VERSAFLOW technology from the high-end models. Backed by world-class service and a customer-focused option structure, the ONE F ensures maximum availability while maintaining extremely attractive purchase and operating costs. This makes it the perfect starting point for companies seeking a cost-efficient gateway to top-level selective soldering performance.
| Technical Specification | VERSAFLOW ONE F |
|---|---|
| Transport system | segmented pin chain conveyor for frameless PCB transport |
| PCB width | 80-508 mm |
| PCB length | 120-508 mm |
| PCB weight | max. 8 kg |
| Flux module | precision spray flux system, 2-axis positioning system |
| Preheating module | infrared from below, max. 10.8 kW IR emitter |
| Solder module mini wave | solder wave height max. 5 mm |
| Solder volume | approx. 14 kg Sn63Pb, approx. 13 kg lead-free alloy |
| Positioning speed | 0.5-200 mm/s |
| Positioning accuracy | +/-0.25 mm |
| Intuitive Software | VERSAFLOW ONE F |
|---|---|
| Fast installation | ✔ |
| Award-winning User interface | ✔ |
| Intuitive operation | ✔ |
| Fast soldering program setup | ✔ |
| Short delivery times | VERSAFLOW ONE F |
|---|---|
| Popular system configuration | ✔ |
| Short delivery times | ✔ |
This product video introduces VERSAFLOW ONE F by summarizing its general working principle and typical application scenarios.
