SMARTFLOW 2020

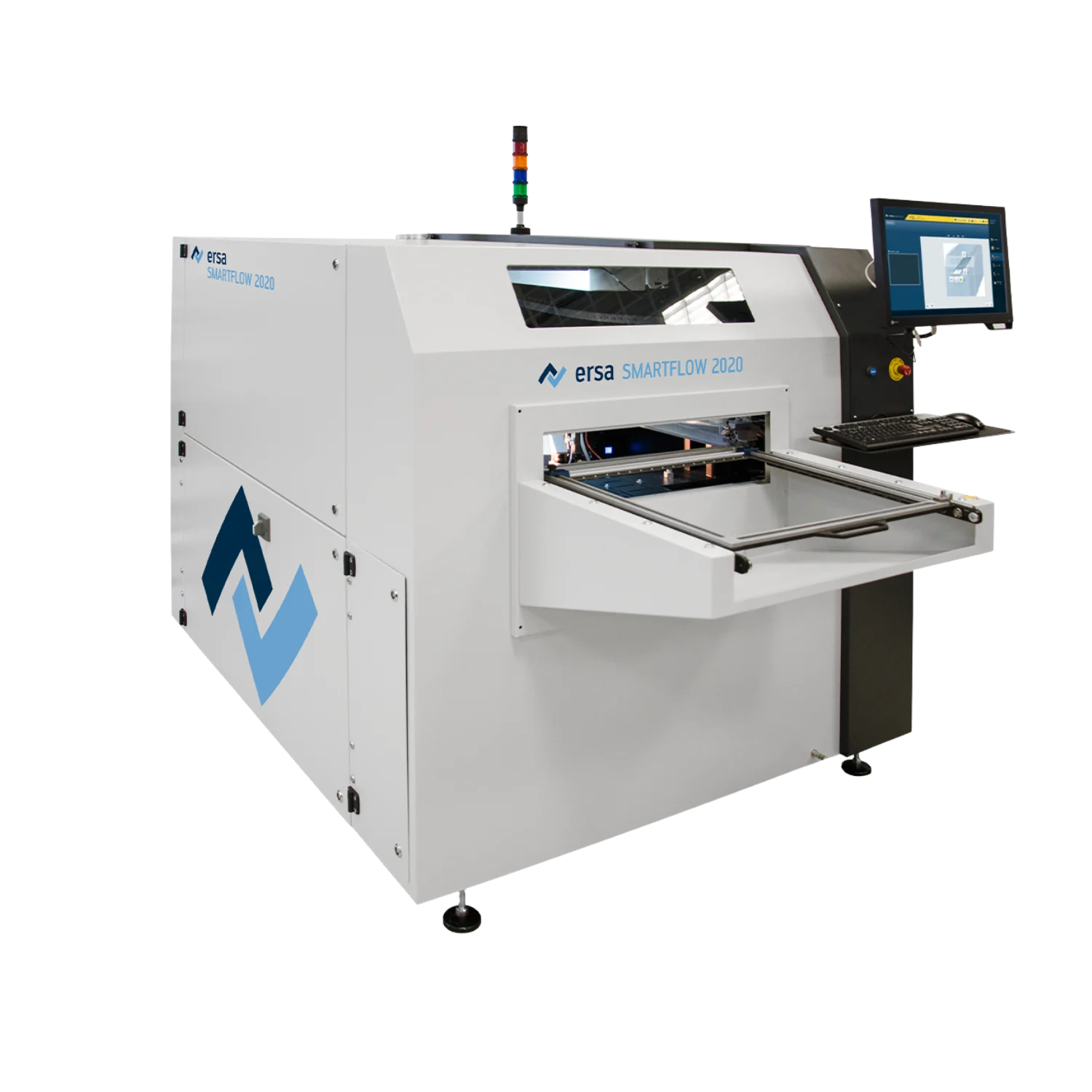

With the SMARTFLOW, Ersa expands its leading selective soldering portfolio with a compact system. Featuring a smaller footprint than the larger VERSAFLOW models, this batch solution combines advanced technology with easy operation. Capable of soldering PCBs up to 508 x 508 mm, the SMARTFLOW requires no more space than a modern manual soldering station. This makes it the perfect entry-level system or an efficient choice for small production runs. True to the motto “compact without compromise,” the system delivers full performance without trade-offs.
| Technical Specification | SMARTFLOW 2020 |
|---|---|
| Length | 1,750 mm |
| Width | 1,450 mm |
| Height | 1,520 mm |
| Conveyor System | SMARTFLOW 2020 |
|---|---|
| Transport / Support Type | Universal mask holder |
| PCB width | 15-508 mm |
| PCB length | 15-508 mm |
| Max. Top PCB structures | up to 80 mm |
| Max. PCB superstructures at the bottom | up to 60 mm |
| Max. PCB weight | 3 kg |
| Fluxer/Preheating/Solder module | SMARTFLOW 2020 |
|---|---|
| Fluxer | Drop jet in various sizes |
| Preheating | IR radiation heating at the bottom or combination of IR at the bottom and IR at the top |
| Soldering module | Electromagnetic solder pot, Mini wave/mini dip (optional) |

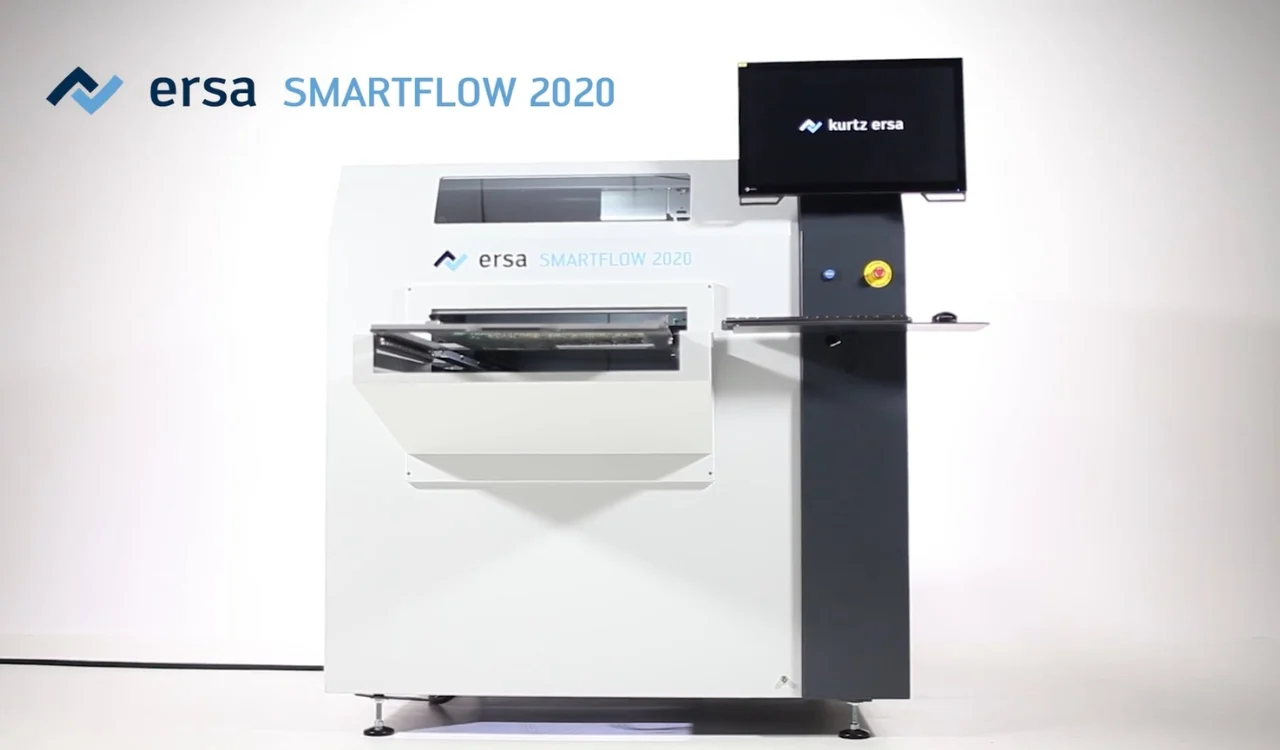

This product video introduces SMARTFLOW 2020 by summarizing its general working principle and typical application scenarios.
