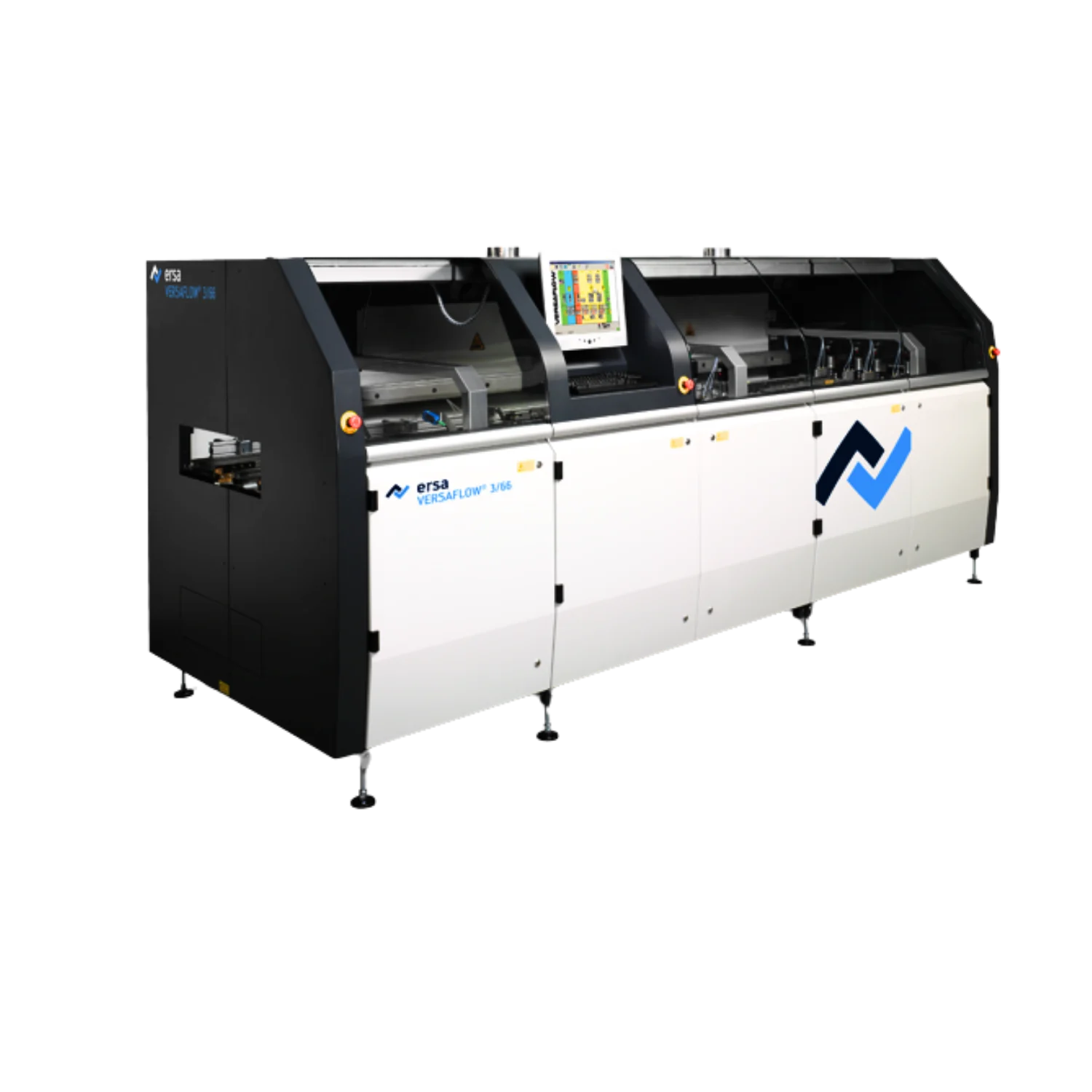

VERSAFLOW 3/66

Highly Flexible Inline XL Selective Soldering for PCBs up to 610 x 610 mm

Wave & Selective Soldering | Selective Soldering

VERSAFLOW 3/66

The VERSAFLOW 3/66 is part of the third generation of VERSAFLOW systems and is engineered for selective soldering of extra-large assemblies.
Handling board sizes up to 610 x 610 mm is effortless for this advanced selective soldering solution.
Depending on throughput needs and soldering tasks, additional fluxing, preheating, and soldering modules can be integrated.
The VERSAFLOW 3/66 supports up to three soldering modules, each configurable with one or two single-wave pots.

Request a Quote WhatsApp Inquiry

Technical Specification

Conveyor System

Conveyor System	VERSAFLOW 3/66
Conveyor Type	Pin chain conveyor or roller conveyor
PCB width	63.5-610 mm
PCB length	127-610 mm
Max. PCB top structures	top up to 120 mm
Max. circuit board structures	at the bottom up to 60 mm (30 mm for z-variable modules)
Max. PCB weight	5 kg (opt. 15 kg)

Fluxer/Preheating/Soldering Module

Fluxer/Preheating/Soldering Module	VERSAFLOW 3/66
Fluxer	Drop-Jet 130 µm stainless steel
Preheating	IR radiator heating, convection or combination of IR and convection
Soldering module	Electromagnetic soldering pot, 1 module with up to 2 pots, solder volume 13 kg/pot
