Maximum throughput in the entry-level class with variable X-axis and up to 4 solder pots

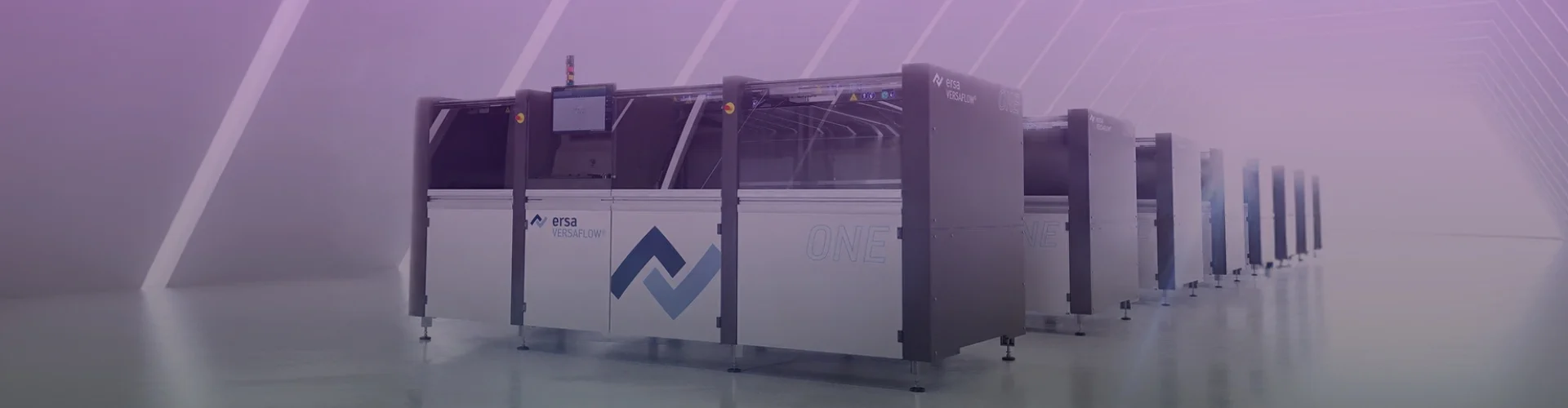

VERSAFLOW ONE X
Step into the excellence class of high-speed selective soldering: The VERSAFLOW ONE X delivers top throughput in the entry-level range of Ersa inline selective soldering systems with its flexible X-axis. Combining trusted Ersa technology with a customer-focused option structure, the system ensures outstanding value with highly attractive purchase and operating costs.
| Technical Specification | VERSAFLOW ONE X |
|---|---|
| Transport system | segmented pin chain conveyor for frameless PCB transport |
| PCB width | 80-508 mm |
| PCB length | 120-610 mm |
| PCB weight | max. 8 kg |
| Flux module | precision spray flux system, 2-axis positioning system |
| Preheating module | infrared from below, max. 14.4 kW IR emitter |
| Solder module mini wave | solder wave height max. 5 mm |
| Solder volume | approx. 14 kg Sn63Pb, approx. 13 kg lead-free alloy |
| Positioning speed | 0.5-200 mm/s |
| Positioning accuracy | +/-0.25 mm |
| Intuitive Software | VERSAFLOW ONE X |
|---|---|
| Fast installation | ✔ |
| Award-winning User interface | ✔ |
| Intuitive operation | ✔ |
| Fast soldering program setup | ✔ |
| Short delivery times | VERSAFLOW ONE X |
|---|---|
| Popular system configuration | ✔ |
| Short delivery times | ✔ |

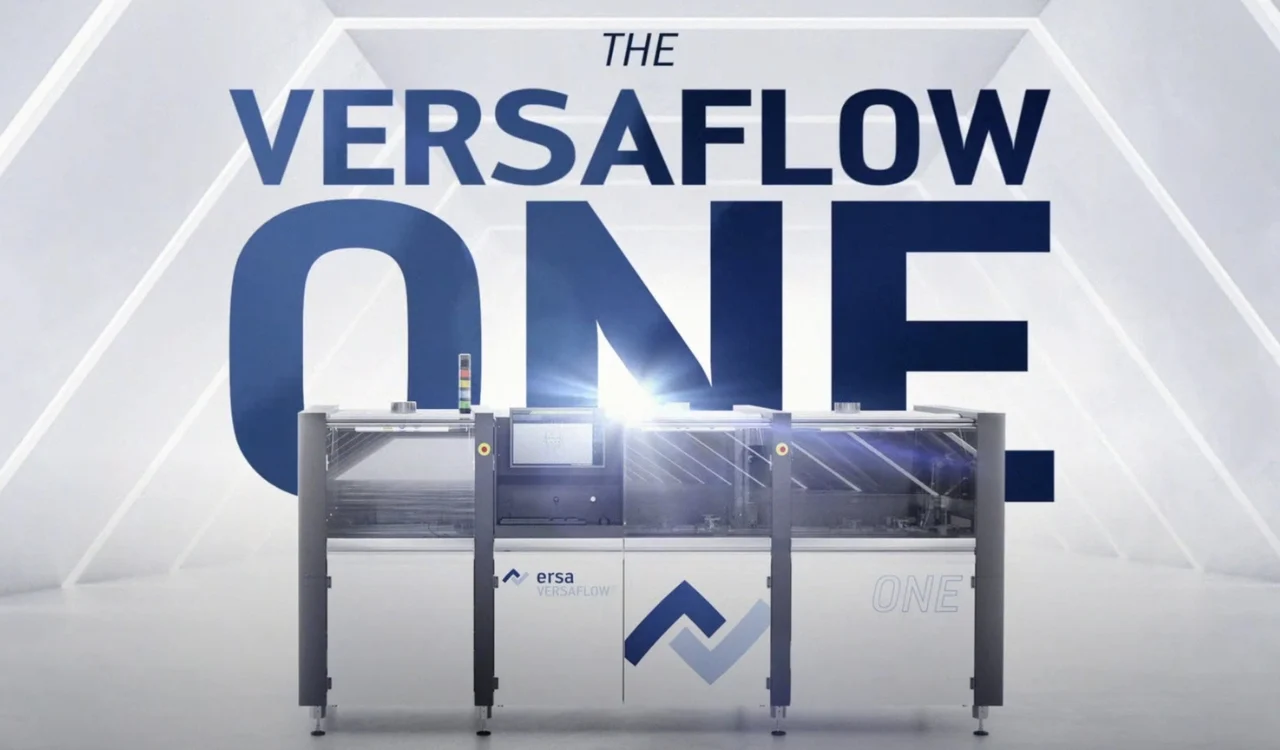

This product video introduces VERSAFLOW ONE X by summarizing its general working principle and typical application scenarios.
